How Refractory Clay is Prepared for Facing Refractory Brick Production

Refractory Clay: Types, Composition, and Uses in Facing Refractory Bricks

What is Refractory Clay?

Refractory clay, also known as fireclay, is a natural heat-resistant material found deep underground, often near molten rock formations. Thanks to its high alumina and silica content, this clay can withstand extreme temperatures and maintain its physical and chemical properties up to 1515°C.

Because of these qualities, refractory clay is widely used in:

• Refractory brick manufacturing
• Industrial furnaces and kilns
• Steelmaking and foundries
• High-temperature insulation applications

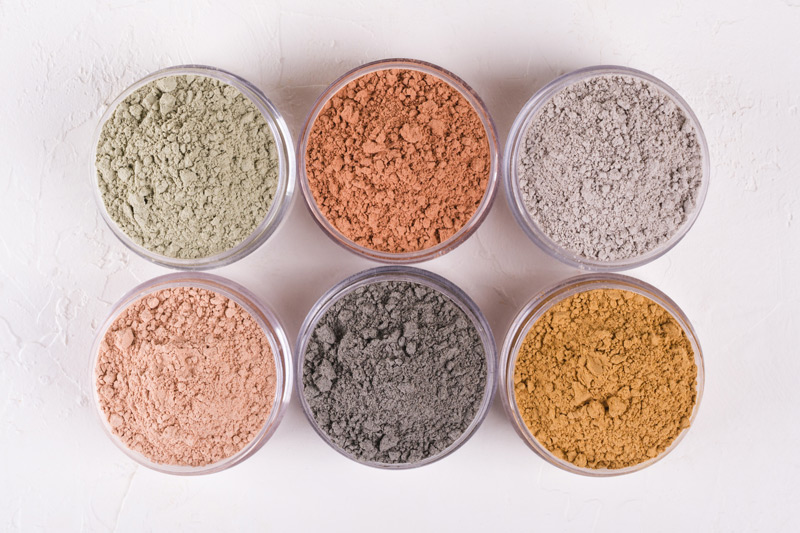

Types of Refractory Clay

Different industries use various types of refractory clays based on their chemical composition and thermal resistance:

1. Alumina-Based Refractory Clay

• High in Al₂O₃ (alumina)
• Excellent heat resistance and dimensional stability
• Commonly used for industrial furnace linings and high-performance facing refractory bricks

2. Silica-Based Refractory Clay

• Rich in SiO₂ (silica)
• Withstands thermal shock and extreme heat
• Mainly applied in metal smelting furnaces and fire-resistant bricks

3. Magnesia-Based Refractory Clay

• Contains MgO (magnesia)
• Offers superior resistance to heat and abrasion
• Widely used in electric arc furnaces and steel industry applications

4. Zeolite-Based Refractory Clay

• Special zeolitic structure with excellent thermal insulation
• Enhances the energy efficiency of refractory bricks

5. Ceramic Refractory Clay

• Possesses natural ceramic properties
• Ideal for heat-resistant ceramic products and specialized construction materials.

Key Raw Materials in Refractory Clay for Facing Bricks

The performance of refractory bricks depends on the right mixture of raw materials, including:

• Alumina (Al₂O₃): Improves heat resistance and reduces thermal expansion
• Silica (SiO₂): Increases structural strength and thermal stability
• Magnesia (MgO): Enhances abrasion resistance in high-stress environments
• Feldspar: Improves adhesion, lowers melting point, and gives bricks a glassy finish
• Kaolin: High-purity clay, turning white after firing, with excellent plasticity
• Ball Clays: Secondary clays rich in aluminum silicates, improving workability
• Zeolites: Provide insulation and moisture absorption
• Other additives: such as pigments or chemical agents to optimize performance

Manufacturing Process of Facing Refractory Bricks

The production of facing refractory bricks follows a precise process to ensure durability, strength, and thermal resistance:

1. Clay Extraction—Mining refractory clay deposits from mountains and quarries
2. Crushing & Grinding—Reducing clay size for uniform processing
3. Impurity Removal—Eliminating unwanted materials like rocks and organic matter
4. Sieving & Re-Grinding—Ensuring fine and uniform particles
5. Clay Blending – Mixing different types of refractory clays without artificial pigments (color depends on natural composition)
6. Moistening & Pressing – Adding 6–17% water, then pressing clay under 400–1400 tons of pressure
7. Drying – Removing initial moisture at ~250°C
8. Firing – Heating bricks in roller kilns at 1250°C for chemical and structural stability
9. Controlled Cooling – Cooling under specific conditions to prevent cracks
10. Packaging & Distribution – Preparing finished refractory bricks for the market

Applications of Refractory Clay in Modern Industries

• Construction industry – Fire-resistant facing bricks for buildings
• Metallurgical industry – Furnace and kiln linings for steel and metal smelting
• Ceramic industry – Heat-resistant ceramic products
• Energy sector – Thermal insulation materials for power plants and refineries

Conclusion

Refractory clay (fireclay) is the foundation of refractory brick production thanks to its exceptional thermal resistance, strength, and durability. By combining raw materials such as alumina, silica, magnesia, kaolin, feldspar, and zeolites, manufacturers create facing refractory bricks that withstand extreme conditions.

From extraction and grinding to firing at high temperatures, every stage in the process is designed to ensure long-lasting performance in construction, metallurgy, and high-temperature applications.
